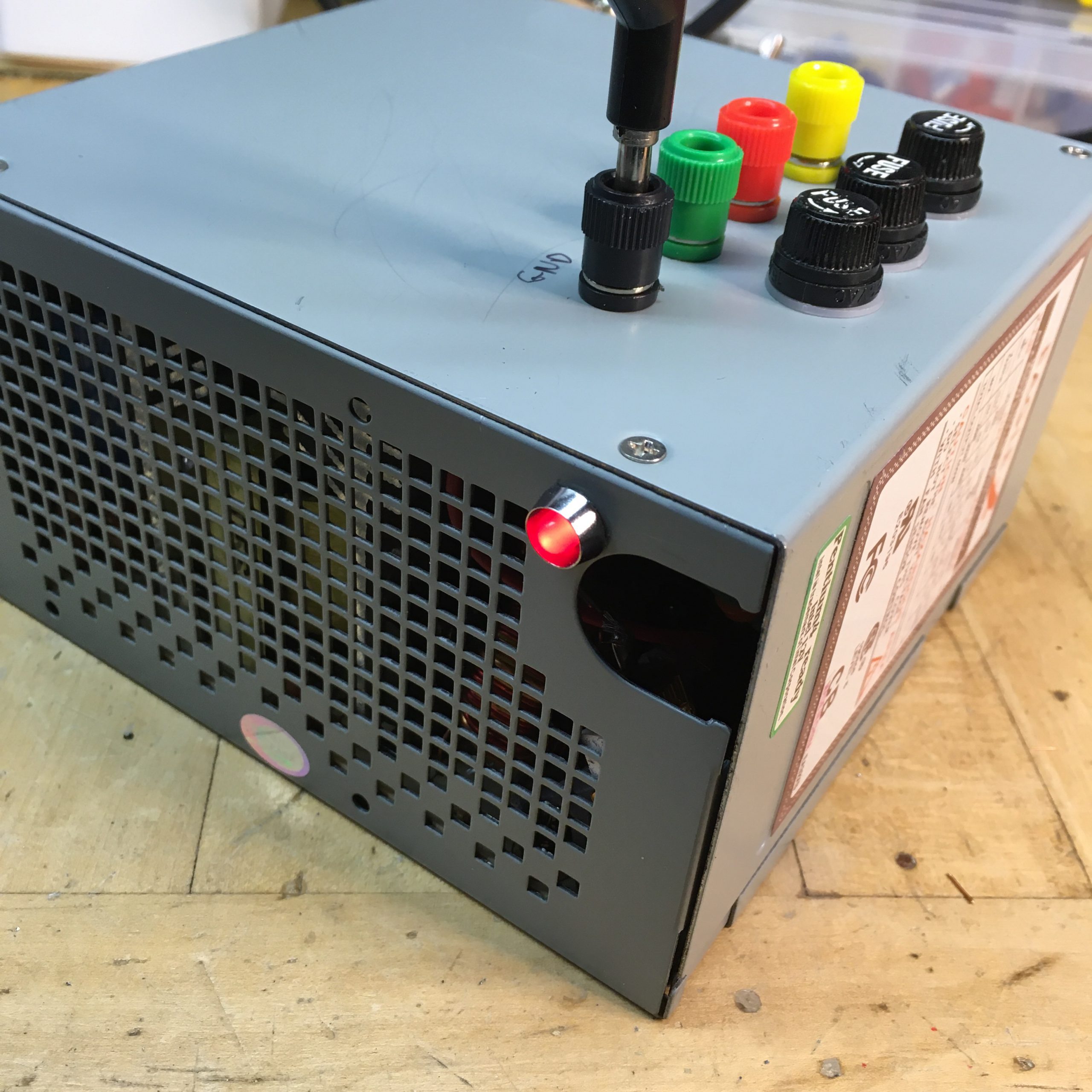

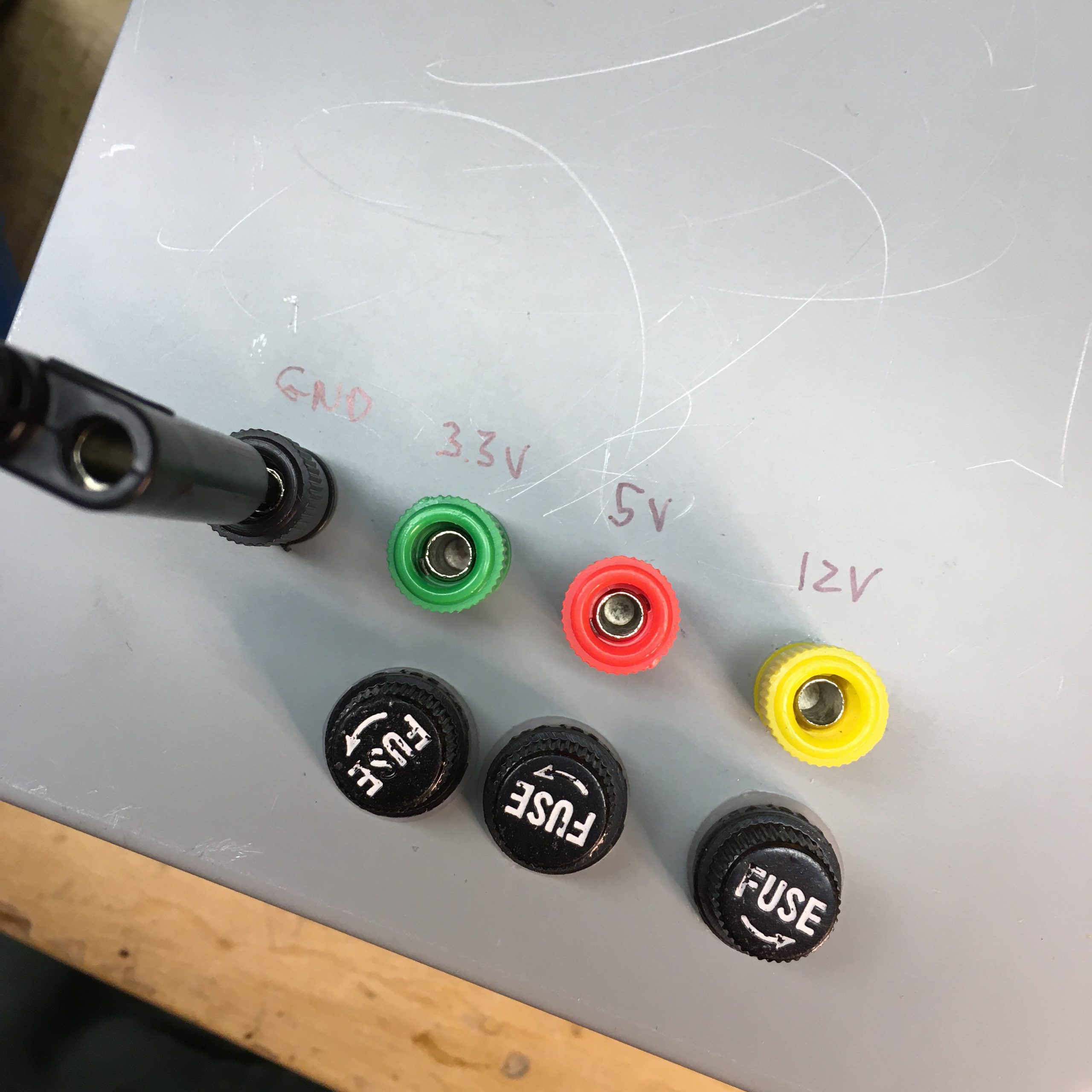

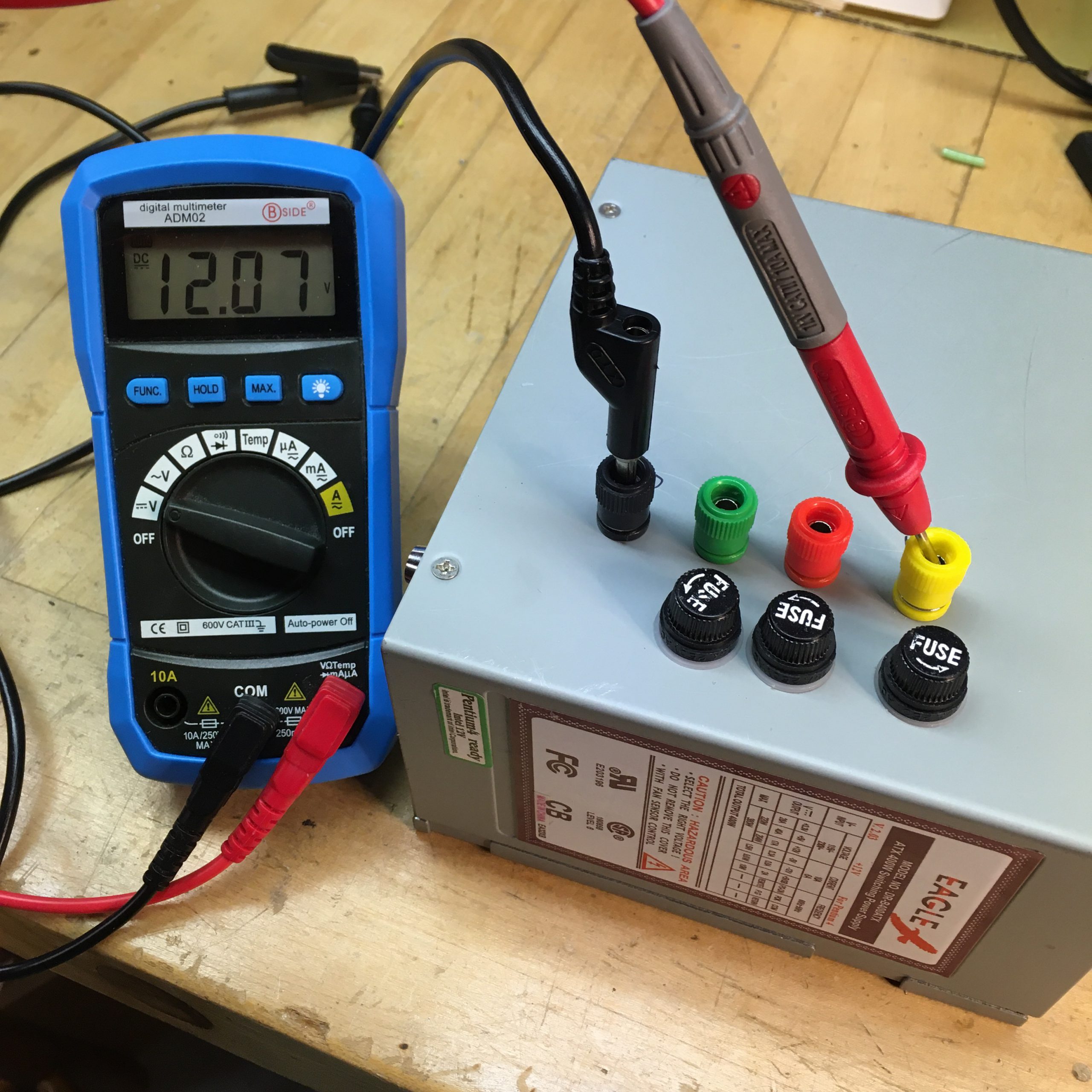

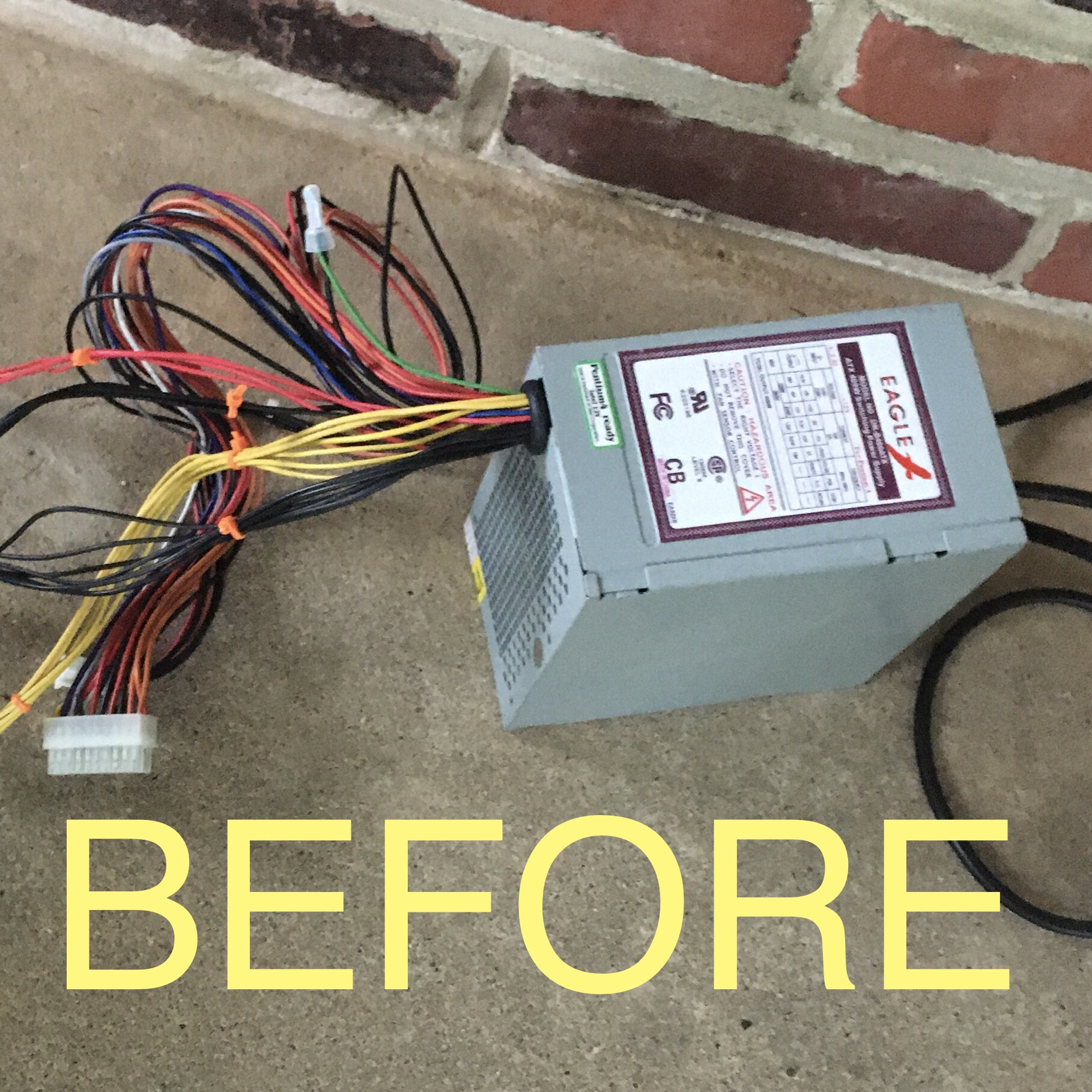

Finished converting this old Pentium 4 ATX power supply to a bench power supply. Trimmed back all the wires, added inline fuses and banana plug jacks. Next time I’ll drill small pilot holes so the big bit doesn’t drift (why the fuse sockets are all out of line). Was a bit tough getting the lid back on with all the wires and I forgot to take picks before putting it back together. Also added the LED on the front. Lots of ideas & instructions for these online if you’re interested in converting one.

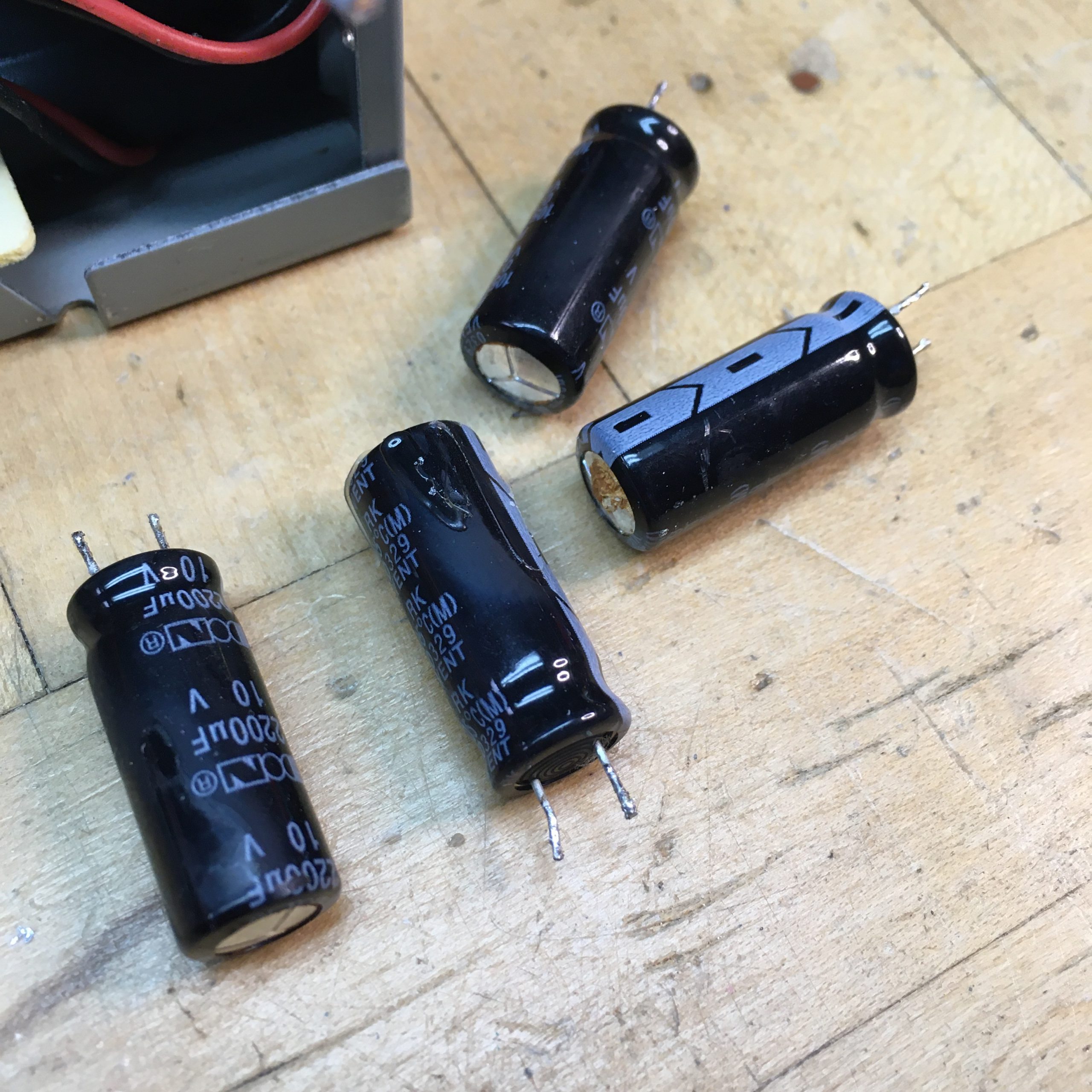

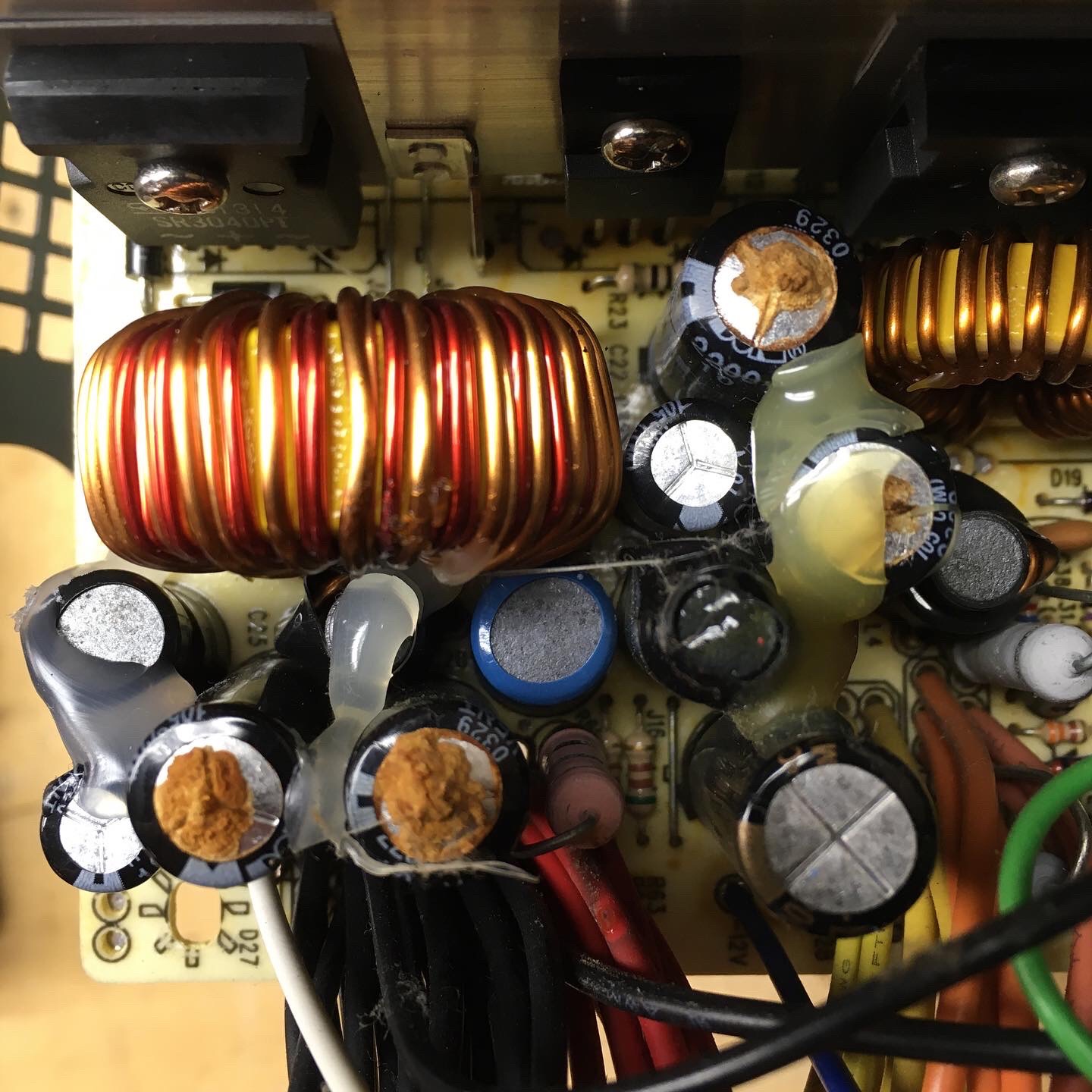

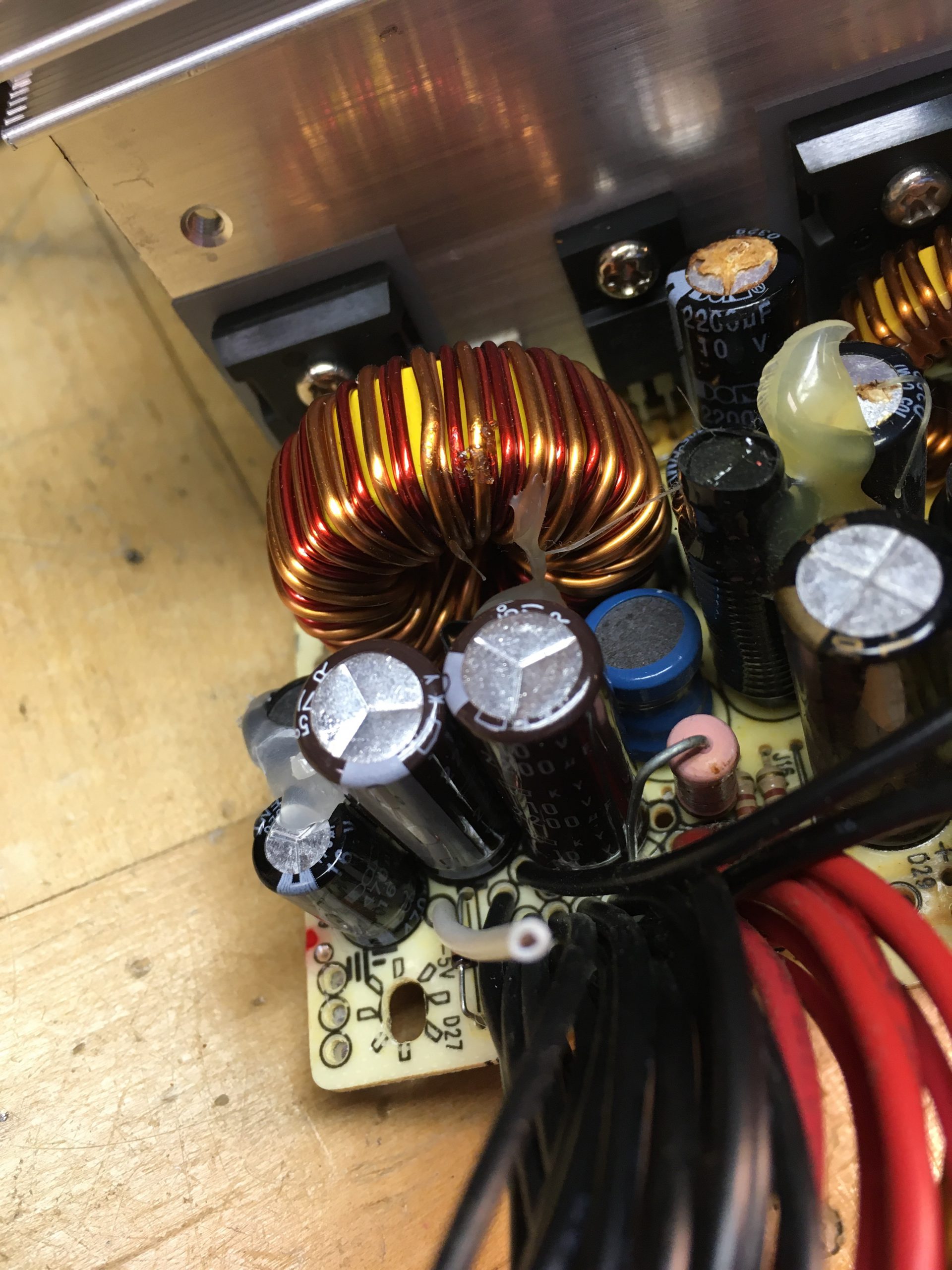

Four of the larger capacitors had leaked and I also replaced them to give this supply a longer lifetime.
